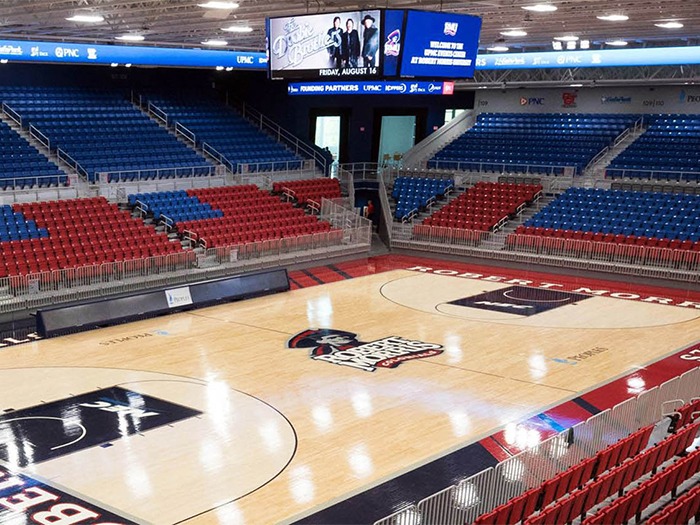

Robert Morris University (RMU) raised private funds to construct the new UPMC Events Center, which includes the Peoples Court, a 4,000-seat arena for men’s and women’s basketball and women’s volleyball, an auxiliary gym, and other event and conference spaces. Local AV integration firm Horizon Information Services worked with the architect to design and install a highly-efficient, and thus value-engineered, sound reinforcement system that uses Danley Sound Labs’ patented point-source loudspeaker and subwoofer technologies to deliver highly-intelligible sound even at extreme SPLs.
Horizon Information Services earned the job because RMU is happy with the work the company has performed throughout the campus, including other sports complexes, academic buildings, and classrooms. “We reached out to the architect, Ross Bianco, to offer our services,” said Jonathan Kaiser, system design and engineering specialist at Horizon. “At around the same time, RMU reached out to the architect and requested that they partner with us. As a result, we were able to get involved early and influence some of the decisions that would impact the sound reinforcement system.”
Jonathan said. “We went with Danley Sound Labs loudspeakers, subwoofers, and amplifiers/DSP because of their very favorable cost-to-performance ratio. Danley’s patented point-source technologies provide a lot of even coverage at high SPLs. To get similar coverage and SPLs with any other loudspeaker manufacturer would have required substantially more boxes and thus substantially more amplifier channels and DSP. Although the price of a single Danley box isn’t small, the fact that we needed so many fewer of them made the price of the Danley system a bargain.”
The sound reinforcement system in the Peoples Court is distributed and time-aligned to work with a center-hung Daktronics scoreboard. Four Danley SH95HO full-range loudspeakers hang from each corner of the scoreboard on a custom rigging frame to cover the court and a sizable section of the lower-bowl seating. All told, eight clusters, each comprised of a Danley TH118XL subwoofer mounted above a Danley SH96HO full-range loudspeaker, ring three sides of the Peoples Court and cover the upper bowl seating along with the remainder of the lower bowl seating. The east end will be used to stage events and currently has two Danley SH95HOs for down fill. For the time being, touring acts will need to bring their own PAs, but Horizon Information Services has plans to install two massive Danley J3-94 Jericho Horns – the same boxes used in 100,000-plus-seat football stadiums – to give the Peoples Court ample in-house concert capacity. Finally, the auxiliary gym, which will mainly be used for practices but which can also host games with standing room only, uses a single Danley TH118XL subwoofer and four Danley SM80 full-range loudspeakers.
The entire system is powered by eight 4-channel Danley 20k4 Pro amplifiers (32 channels total at 5000 Watts each) with built-in DSP and presets for every box that Danley makes. The amplifiers receive signal from a QSC Q-Sys DSP system via Dante, which in turn receives input via Dante from a DiGiCo console at FOH.
